5C Air Collet Fixture

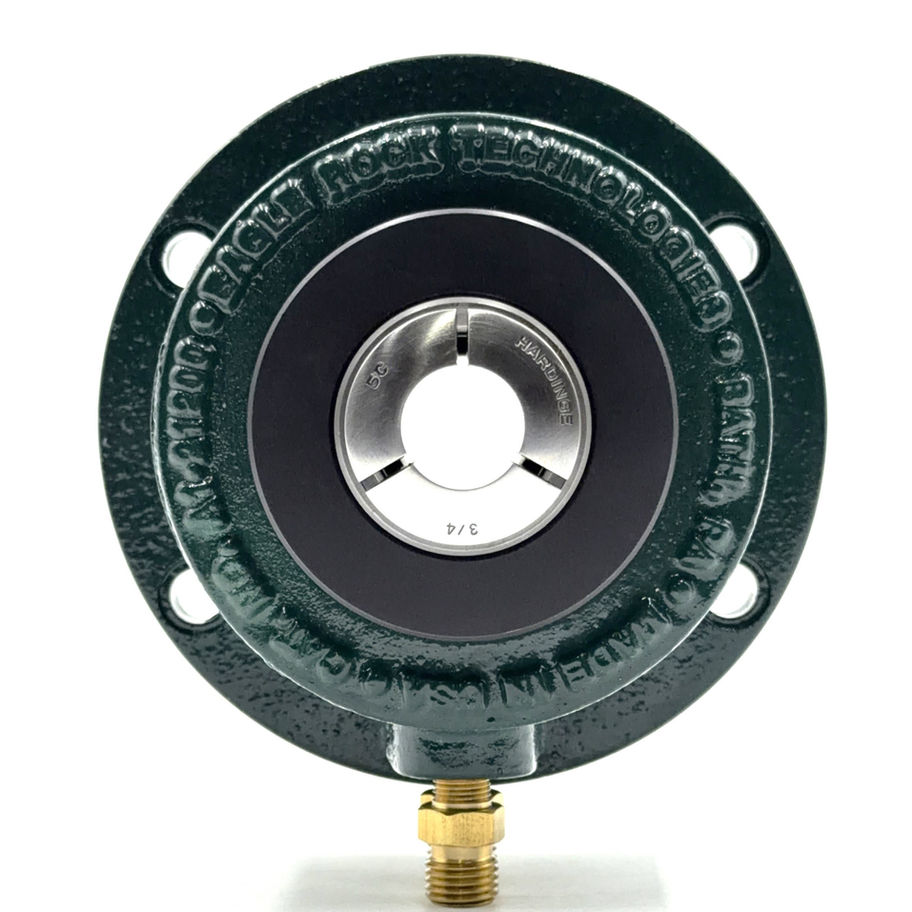

Our 5C Air Collet Fixture by itself. Delivering consistent clamping force, reduced setup time, and enhanced productivity for high-volume machining applications.

Designed especially for high production applications. Manufactured by Wettstein Tool™, their light weight and compact size permits the use of several units on indexing tables for custom applications or used individually for fast chucking of parts on milling machines and drill presses. Air operation is double acting for “Power” opening and closing of the collet. The collet is locked into position for positive depth location of work. These units operate efficiently and effectively on air pressure up to 150 PSI with upward clamping pressure exceeding 7.5 times line pressure. All bearings and moving parts are hardened and precision ground for accuracy and long life.

All you need is a collet and an air compressor for our Kits. The foot operated 4-way air valve provides “hands free” operation of the Air Collet Fixture. The valve locks in place in either the clamped or unclamped position without the need for constant foot pressure. Available for Standard 5C collets and also for 5C 2" Step Collet with 1-1/4 depth. Kit includes our standard Air Collet Fixture, a 4-Way Foot Valve and [3] Air Hoses.
